Evaporative concentrator

DOUBLE-EFFECT FALLING FILM EVAPORATOR

Adopts twin effects type, high use efficiency of steam, low energy consumption;

Full closed process, fast and low temperature evaporation; so the nature color and flavor and smell remained.


Consult Now

Overview

Characteristics

1.Adopts twin effects type, high use efficiency of steam, low energy consumption;

2.Full closed process, fast and low temperature evaporation; so the nature color and flavor and smell remained.

3.Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

4.Large scale of the concentrate ratioas the products between the different effecs can recycle separately, so the concentrate ratio can be regulated in large scale;

5.The machine attach with spraying ball and self CIP system.

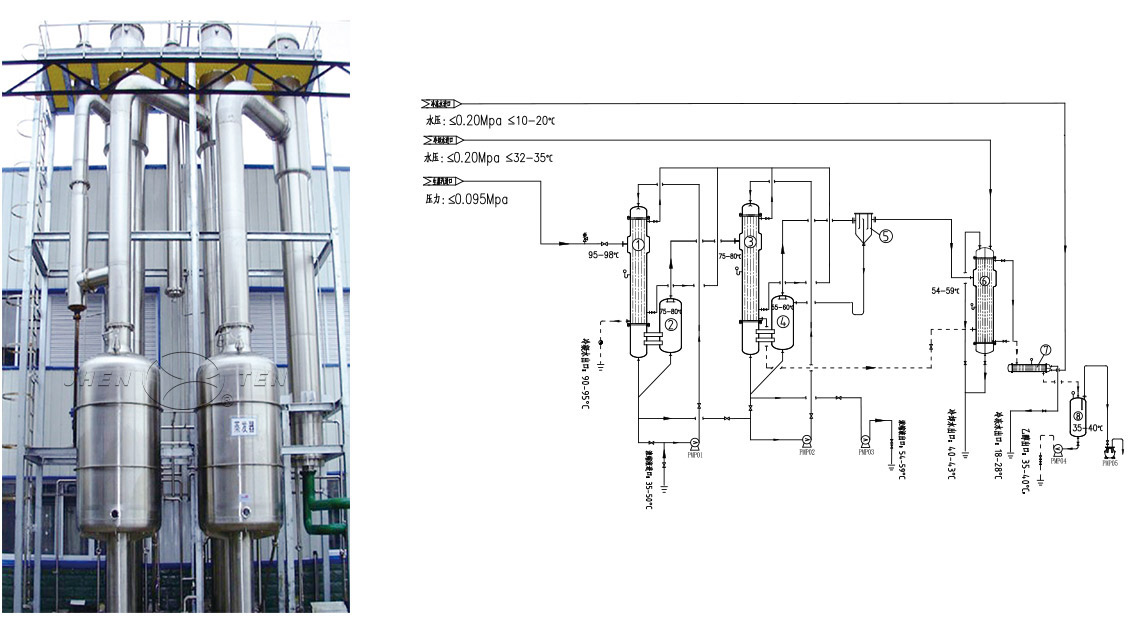

DOUBLE-EFFECT FALLING FILM EVAPORATOR(圖1)

Application

This equipment adopts two effects down falling film. construction: evaporator, separator, condenser etc.Use: Popularly used for concentrating and dehydration in food, biology engineering, pharmacy,organic solvents and chemistry etc.

Technical Parameter


Project

SJM2-100

SJM2-200

SJM2-400

SJM2-600

SJM2-800

SJM2-1000

SJM2-1200

Ethanol evaporation capacity (kg/h)

100

200

400

600

800

1000

1200

. Heating source medium: steam








Raw steam pressure (Mpa)

0.095 (Absolute pressure)

Steam heat consumption (kcal/h)

17100

34200

68400

102600

136800

171000

205200

. Heating source medium: heat transfer oil








Heat transfer oil inlet and outlet temperature (℃)

120—130/100—110

Heat consumption of heat transfer oil (kcal/h)

18000

36000

72000

108000

144000

180000

216000

Working pressure of heat transfer oil (Mpa)

0.15—0.20

Ⅰ e?ect evaporation (kg/h)

51.8

103

207

310

414

518

622

Ⅱ e?ect evaporation (kg/h)

48.2

97

193

290

386

482

578

Steam condensate volume (kg/h)

32

63

127

190

253

317

380

Ⅰ e?ect evaporation temperature (℃)

75—80

Ⅱ e?ect evaporation temperature (℃)

55—60

Ⅰ e?ect vacuum degree (-Mpa)

0.053—0.063

Ⅱ e?ect vacuum degree (-Mpa)

0.081—0.085

Ethanol discharge temperature (℃)

35—40

Discharge temperature of Ⅱ-e?ect concentrated liquid (℃)

54—59

Ⅰ e?ect design heating area (㎡)

2.0

4.0

8.0

12

16

20

22

Ⅱ e?ect design heating area (㎡)

3.0

6.0

13

18

28

30

34

Condensing area (㎡)

3.5

7.0

15

20

30

35

40

Condenser working pressure (Mpa)

0.20—0.25

Cooling area (㎡)

2.0

3.0

4.0

5.0

6.0

8.0

10

Cooler working pressure (Mpa)

0.15—0.20

Cooling water circulation (t/h)

2.0

4.0

7.5

11

16

20

22

Cooling water working pressure (Mpa)

0.20—0.25

Cooling water inlet and outlet temperature (℃)

32—35/40-43

(Kcal/h) Chilled water consumption (Kcal/h)

1500

3000

6000

9000

12000

15000

18000

Chilled water inlet and outlet temperature (℃)

10—20/18—28

Chilled water working pressure (Mpa)

0.15—0.20

Total installed power (kw/h)

4.5

5.55

6.65

8.85

10.7

12.5

12.5
