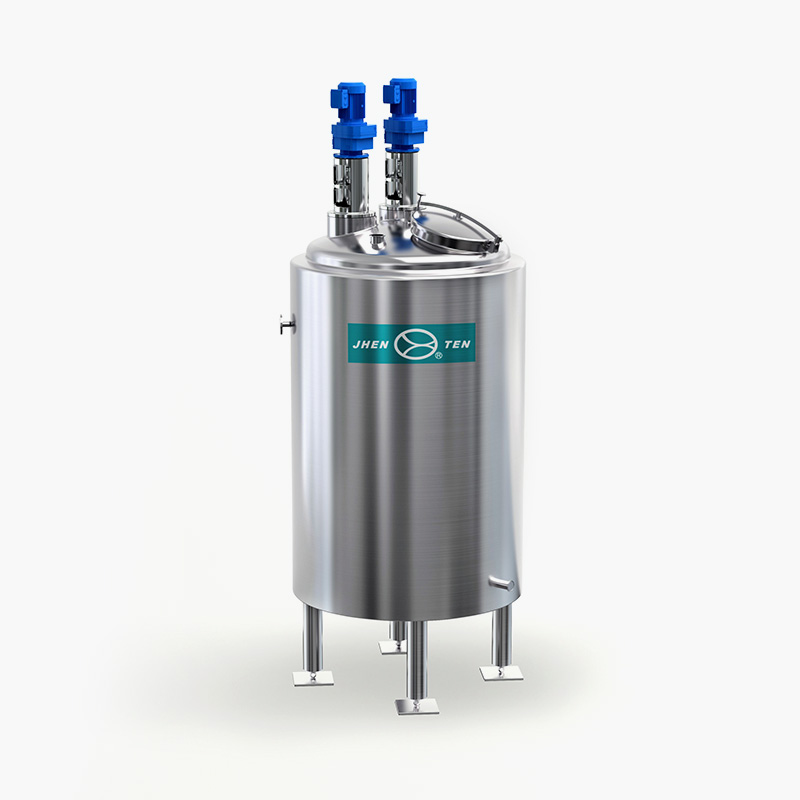

Emulsification Tank

Feature

? Volume:600L~20000L and multiple specification, also can design and manufacture according to customers’ requirement.
? Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).
? The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’ requirement.
? Agitation adopts top mechanical agitation. Stirring methods(Push type, screw, anchor, etc) can be selected.
? The sealing of agitating shaft and emulsification shaft adopt sanitary mechanical seal. The mixing motor can use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers’ requirement. (Frequency control is widely used)Emulsion motor adopts frequency control of motor speed reducer
