Auxiliary Systems

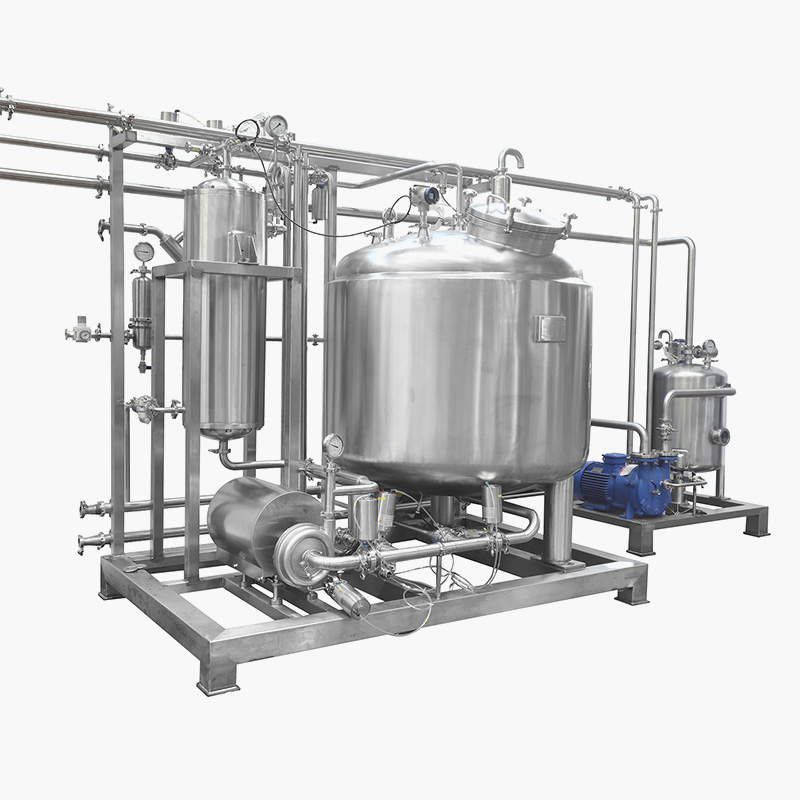

CIP/SIP Cleaning Unit
Delivers automatic whole-circuit cleaning and sterilization compliant with ASME BPE standards. This fully automated Clean-in-Place/Sterilize-in-Place (CIP/SIP) system integrates multi-stage cleaning sequences (acid/alkaline/pure water) with steam sterilization at 121°C, achieving seamless coverage ≥99.9% across evaporators, piping, and separator internals. Residual detection meets ASME BPE SD-3.2 specifications, fulfilling stringent hygienic requirements for sterile manufacturing in pharmaceutical and dairy industries.

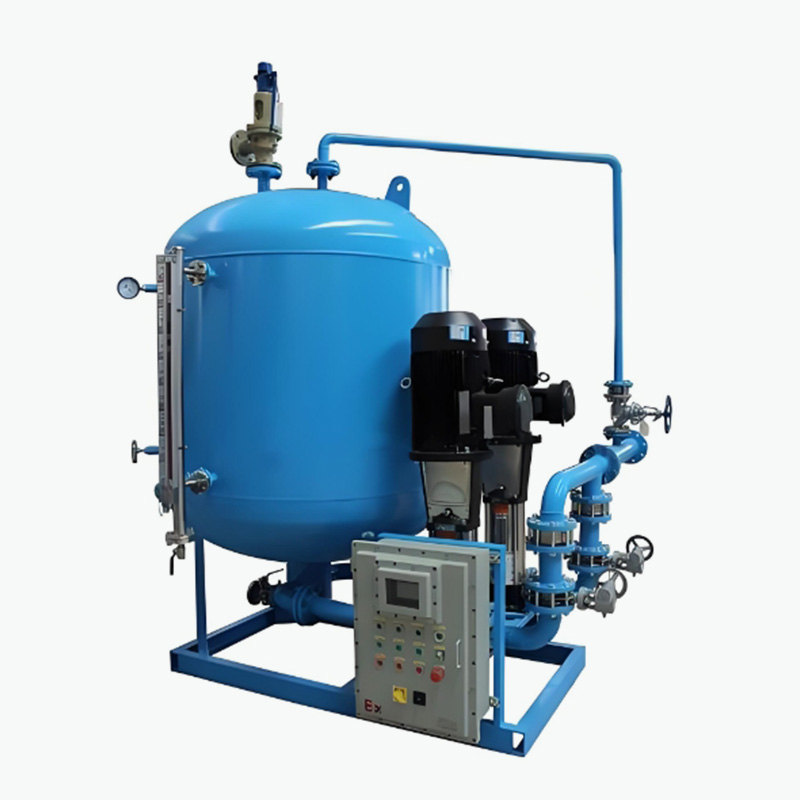

Condensate Recovery Unit
Utilizes multi-stage flash evaporation coupled with plate heat exchange technology to efficiently recover latent heat from secondary steam, achieving thermal energy reuse rates over 85%. Equipped with real-time water quality monitoring, the recovered water can be recycled to boiler feedwater or process streams, reducing steam consumption costs by 15-30%. Designed for energy-intensive industries like chemicals and food processing to meet sustainability targets.

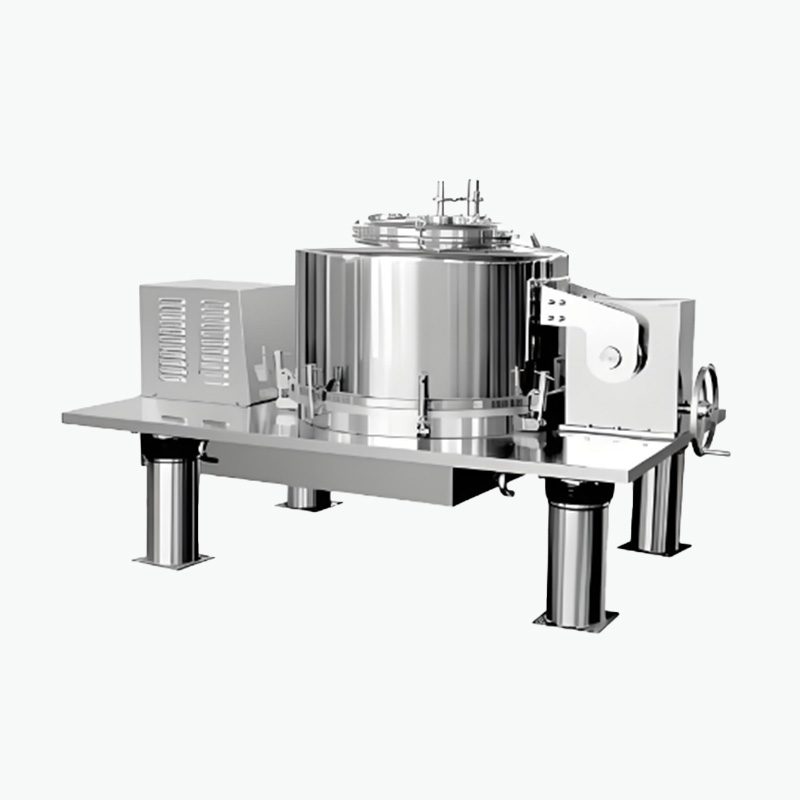

Crystallization Separation Module (Optional)
Features an intelligent centrifuge-thickener linkage system with online supersaturation monitoring for precise crystal size distribution control. The modular design enables mother liquor recycling and re-concentration, producing high-purity crystals. Ideal for high-value production including active pharmaceutical ingredient refining and electronic-grade chemical purification.
